Kafka Connect 介绍

Kafka Connect 是一个用于在 Apache Kafka® 和其他数据系统之间可扩展且可靠地流式传输数据的工具。通过将数据移入和移出 Kafka 进行标准化，使得快速定义连接器以在 Kafka 中传输大型数据集变得简单，可以更轻松地构建大规模的实时数据管道。

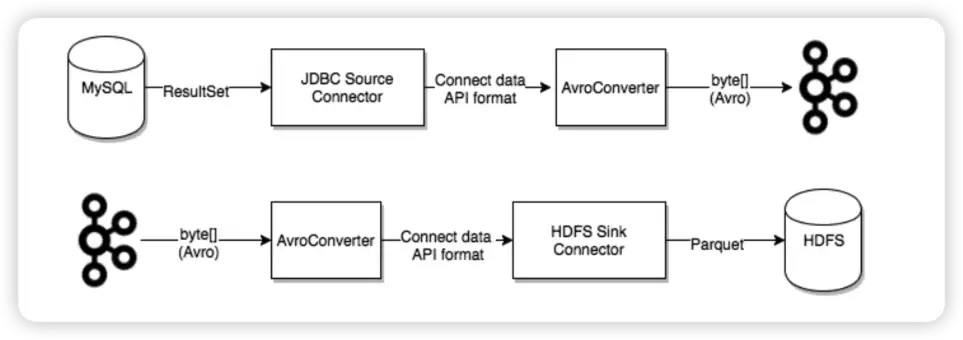

Kafka connect介绍

Kafka 连接器通常用来构建 data pipeline，一般有两种使用场景：

开始和结束的端点：例如，将 Kafka 中的数据导出到数据库，或者把 Mysql 数据库中的数据导入 Kafka 中。数据传输的中间媒介：例如，为了把海量的日志数据存储到 Elasticsearch 中，可以先把这些日志数据传输到 Kafka 中，然后再从 Kafka 中将这些数据导入到 Elasticsearch 中进行存储。Kafka 连接器可以作为数据管道各个阶段的缓冲区，将消费者程序和生产者程序有效地进行解耦。

Kafka Connect 分为两种：

Source Connect：负责将数据导入 Kafka。 Sink Connect：负责将数据从 Kafka 系统中导出到目标表。

Kafka Connect

Kafka Connect 使用

Kafka Connect 目前支持两种执行模式：Standalone 模式和分布式模式。

standalong模式

第一个参数 config/connect-standalone.properties 是 worker 的配置。这其中包括 Kafka 连接参数、序列化格式以及提交 Offset 的频率等配置：

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#    http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

# These are defaults. This file just demonstrates how to override some settings.
bootstrap.servers=localhost:9092

# The converters specify the format of data in Kafka and how to translate it into Connect data. Every Connect user will
# need to configure these based on the format they want their data in when loaded from or stored into Kafka
key.converter=org.apache.kafka.connect.json.JsonConverter
value.converter=org.apache.kafka.connect.json.JsonConverter
# Converter-specific settings can be passed in by prefixing the Converter's setting with the converter we want to apply
# it to
key.converter.schemas.enable=true
value.converter.schemas.enable=true

offset.storage.file.filename=/tmp/connect.offsets
# Flush much faster than normal, which is useful for testing/debugging
offset.flush.interval.ms=10000

# Set to a list of filesystem paths separated by commas (,) to enable class loading isolation for plugins
# (connectors, converters, transformations). The list should consist of top level directories that include
# any combination of:
# a) directories immediately containing jars with plugins and their dependencies
# b) uber-jars with plugins and their dependencies
# c) directories immediately containing the package directory structure of classes of plugins and their dependencies
# Note: symlinks will be followed to discover dependencies or plugins.
# Examples:
# plugin.path=/usr/local/share/java,/usr/local/share/kafka/plugins,/opt/connectors,
#plugin.path=

后面的配置是指定要启动的 Connector 的参数。这里配置了mysql source和mysql sink connector：

mysql source

#
# Copyright 2018 Confluent Inc.
#
# Licensed under the Confluent Community License (the "License"); you may not use
# this file except in compliance with the License.  You may obtain a copy of the
# License at
#
# http://www.confluent.io/confluent-community-license
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
# WARRANTIES OF ANY KIND, either express or implied.  See the License for the
# specific language governing permissions and limitations under the License.
#

# A simple example that copies all tables from a SQLite database. The first few settings are
# required for all connectors: a name, the connector class to run, and the maximum number of
# tasks to create:
name=test-source-mysql-jdbc-autoincrement
connector.class=io.confluent.connect.jdbc.JdbcSourceConnector
tasks.max=1
# The remaining configs are specific to the JDBC source connector. In this example, we connect to a
# SQLite database stored in the file test.db, use and auto-incrementing column called 'id' to
# detect new rows as they are added, and output to topics prefixed with 'test-sqlite-jdbc-', e.g.
# a table called 'users' will be written to the topic 'test-sqlite-jdbc-users'.
connection.url=jdbc:mysql://192.168.11.91:30802/biz_monitor_warn
connection.user=root
connection.password=root
table.whitelist=t_alert,t_threshold_alarm
topic.prefix=connect-jdbc-monitor_warn_

mode=timestamp
timestamp.column.name=submissionTime

# Define when identifiers should be quoted in DDL and DML statements.
# The default is 'always' to maintain backward compatibility with prior versions.
# Set this to 'never' to avoid quoting fully-qualified or simple table and column names.
#quote.sql.identifiers=always

mysql sink

#
# Copyright 2018 Confluent Inc.
#
# Licensed under the Confluent Community License (the "License"); you may not use
# this file except in compliance with the License.  You may obtain a copy of the
# License at
#
# http://www.confluent.io/confluent-community-license
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
# WARRANTIES OF ANY KIND, either express or implied.  See the License for the
# specific language governing permissions and limitations under the License.
#

# A simple example that copies from a topic to a SQLite database.
# The first few settings are required for all connectors:
# a name, the connector class to run, and the maximum number of tasks to create:
name=test-sink
connector.class=io.confluent.connect.jdbc.JdbcSinkConnector
tasks.max=1

# The topics to consume from - required for sink connectors like this one
topics=connect-jdbc-monitor_warn_t_alert,connect-jdbc-monitor_warn_t_threshold_alarm

# Configuration specific to the JDBC sink connector.
# We want to connect to a SQLite database stored in the file test.db and auto-create tables.
connection.url=jdbc:mysql://192.168.11.91:30802/zm_test_2404
connection.user=root
connection.password=root
auto.create=true

# Define when identifiers should be quoted in DDL and DML statements.
# The default is 'always' to maintain backward compatibility with prior versions.
# Set this to 'never' to avoid quoting fully-qualified or simple table and column names.
#quote.sql.identifiers=always

启动命令：

./connect-standalone.sh ../config/connect-standalone.properties ../config/connect-jdbc-source-mysql.properties ../config/connect-jdbc-sink-mysql.properties

distributed 模式

分布式模式可以自动平衡工作负载，并可以动态扩展（或缩减）以及提供容错。分布式模式的执行与 Standalone 模式非常相似：

bin/connect-distributed.sh config/connect-distributed.properties

不同之处在于启动的脚本以及配置参数。在分布式模式下，使用 connect-distributed.sh 来代替 connect-standalone.sh。第一个 worker 配置参数使用的是 config/connect-distributed.properties 配置文件：

bootstrap.servers=localhost:9092
group.id=connect-cluster
key.converter.schemas.enable=true
value.converter.schemas.enable=true
offset.storage.topic=connect-offsets
offset.storage.replication.factor=1
#offset.storage.partitions=25
config.storage.topic=connect-configs
config.storage.replication.factor=1
status.storage.topic=connect-status
status.storage.replication.factor=1
#status.storage.partitions=5
offset.flush.interval.ms=10000

Kafka Connect 将 Offset、配置以及任务状态存储在 Kafka Topic 中。建议手动创建 Offset、配置和状态的 Topic，以达到所需的分区数和复制因子。如果在启动 Kafka Connect 时尚未创建 Topic，将使用默认分区数和复制因子来自动创建 Topic，这可能不适合我们的应用。在启动集群之前配置如下参数至关重要：

group.id： Connect 集群的唯一名称，默认为 connect-cluster。具有相同 group id 的 worker 属于同一个 Connect 集群。需要注意的是这不能与消费者组 ID 冲突。 config.storage.topic：用于存储 Connector 和任务配置的 Topic，默认为 connect-configs。需要注意的是这是一个只有一个分区、高度复制、压缩的 Topic。我们可能需要手动创建 Topic 以确保配置的正确，因为自动创建的 Topic 可能有多个分区或自动配置为删除而不是压缩。 offset.storage.topic：用于存储 Offset 的 Topic，默认为 connect-offsets。这个 Topic 可以有多个分区。 status.storage.topic：用于存储状态的 Topic，默认为 connect-status。这个 Topic 可以有多个分区。需要注意的是在分布式模式下需要通过 rest api 来管理 Connector。

比如：

GET /connectors – 返回所有正在运行的connector名。 POST /connectors – 新建一个connector; 请求体必须是json格式并且需要包含name字段和config字段，name是connector的名字，config是json格式，必须包含你的connector的配置信息。 GET /connectors/{name} – 获取指定connetor的信息。 GET /connectors/{name}/config – 获取指定connector的配置信息。 PUT /connectors/{name}/config – 更新指定connector的配置信息。

Kafka Connect 接口调用展示

listConnectors

curl -L http://192.168.11.123:8083/connectors

[
    "test-sink",
    "test-source-mysql-jdbc-autoincrement"
]

getConnectorConfig

curl -L http://192.168.11.123:8083/connectors/test-sink/config

{
    "connector.class": "io.confluent.connect.jdbc.JdbcSinkConnector",
    "connection.password": "root",
    "connection.user": "root",
    "tasks.max": "1",
    "topics": "connect-jdbc-monitor_warn_t_alert,connect-jdbc-monitor_warn_t_threshold_alarm",
    "name": "test-sink",
    "auto.create": "true",
    "connection.url": "jdbc:mysql://192.168.11.91:30802/zm_test_2404"
}

getTasksConfig

curl -L http://192.168.11.123:8083/connectors/test-sink/tasks-config

{
    "test-sink-0": {
        "connector.class": "io.confluent.connect.jdbc.JdbcSinkConnector",
        "connection.password": "root",
        "task.class": "io.confluent.connect.jdbc.sink.JdbcSinkTask",
        "connection.user": "root",
        "tasks.max": "1",
        "topics": "connect-jdbc-monitor_warn_t_alert,connect-jdbc-monitor_warn_t_threshold_alarm",
        "name": "test-sink",
        "auto.create": "true",
        "connection.url": "jdbc:mysql://192.168.11.91:30802/zm_test_2404"
    }
}

getConnectorActiveTopics

curl -L http://192.168.11.123:8083/connectors/test-sink/topics

{
    "test-sink": {
        "topics": [
            "connect-jdbc-monitor_warn_t_threshold_alarm",
            "connect-jdbc-monitor_warn_t_alert"
        ]
    }
}

createConnector

curl -i -X POST -H "Accept:application/json" -H "Content-Type:application/json" http://192.168.11.123:8083/connectors -d
{
    "config": {
        "connector.class": "io.confluent.connect.jdbc.JdbcSinkConnector",
        "connection.url": "jdbc:mysql://192.168.11.91:30802/test_kafka_connect",
        "connection.password": "root",
        "connection.user": "root",
        "tasks.max": "1",
        "topics": "connect-jdbc-monitor_warn_t_alert",
        "table.name.format": "t_alert",
        "name": "mysql-sink",
        "auto.create": "true"
    },
    "name": "mysql-sink"
}

{
    "name": "mysql-sink",
    "config": {
        "connector.class": "io.confluent.connect.jdbc.JdbcSinkConnector",
        "connection.url": "jdbc:mysql://192.168.11.91:30802/test_kafka_connect",
        "connection.password": "root",
        "connection.user": "root",
        "tasks.max": "1",
        "topics": "connect-jdbc-monitor_warn_t_alert",
        "table.name.format": "t_alert",
        "name": "mysql-sink",
        "auto.create": "true"
    },
    "tasks": [
        {
            "connector": "mysql-sink",
            "task": 0
        }
    ],
    "type": "sink"
}

还有很多管理接口期待探索，如createConnector,destroyConnector,putConnectorConfig,restartConnector等

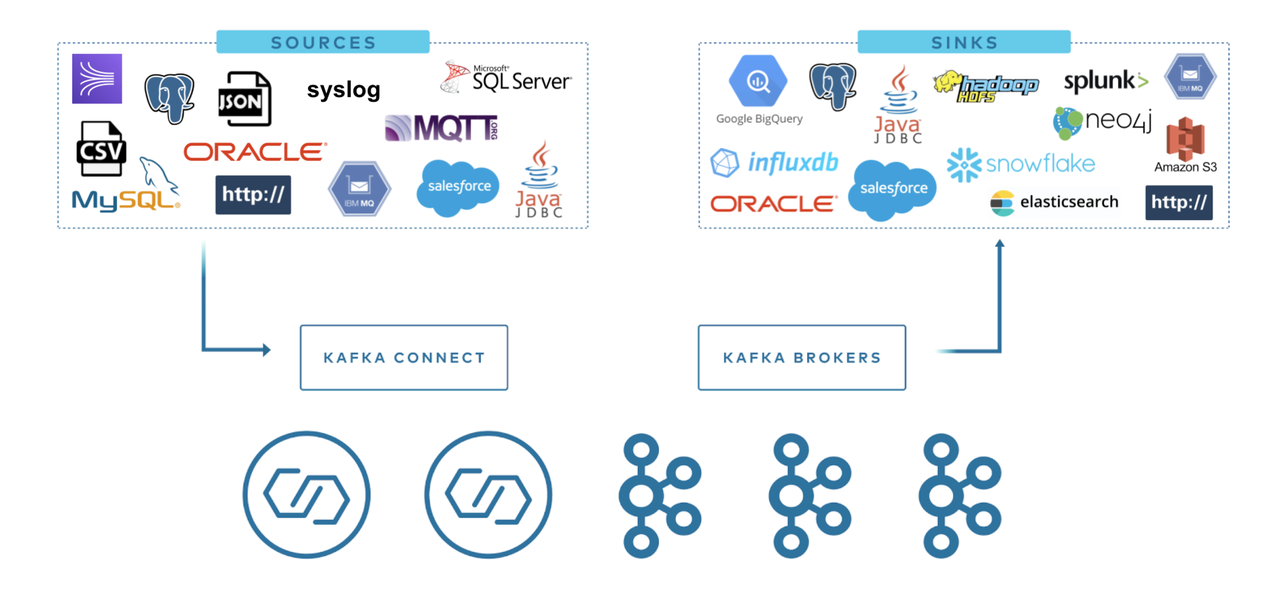

Kafka connect使用

数据汇集
